UV technology has a long history of over 100 years and has since then experienced a thorough utilization of the technology’s potential. Today, UV disinfection is recognized as an effective method in a wide range of water qualities and applications. Improved technological and design configurations have made UV a viable OPEX and CAPEX solution for disinfection processes, as well as in more advanced applications such as Advanced Oxidation Processes (AOP).
The sustainable method is based on the natural disinfection action of the sun’s rays. UV systems produce the same ultraviolet germicidal rays through its UV lamps, just thousands of times stronger. No bacteria, viruses, molds, or spores are able to withstand this water treatment path, making ultraviolet technology a globally accepted solution for water disinfection.
The use of UV technology effectively ensures that the water quality, both physical and chemical, remains identical before and after the treatment. Additionally, the reaction time between the UV irradiation and the organism to be inactivated is very short and does not create any by-products at all. These are some of the advantages that makes UV technology systems the preferred solution in a wide range of water treatment applications.
The radiation dose or fluence is a design parameter for the disinfection effect of the UV irradiation. The necessary dose to achieve a given inactivation depends on the organism to be killed. The measurement is expressed in mWs/cm² and/or mJ/cm².
UV Transmission is the measure of the UV light’s ability to pass through 1 cm of liquid. When light irradiates the water, the water absorbs a part of the radiation, resulting in a decrease in light intensity from the lamp. The design of ULTRAAQUA UV systems takes this into account, being easy to install, maintain and thoroughly cost-optimized.
ULTRAVIOLET LAMP TECHNOLOGY

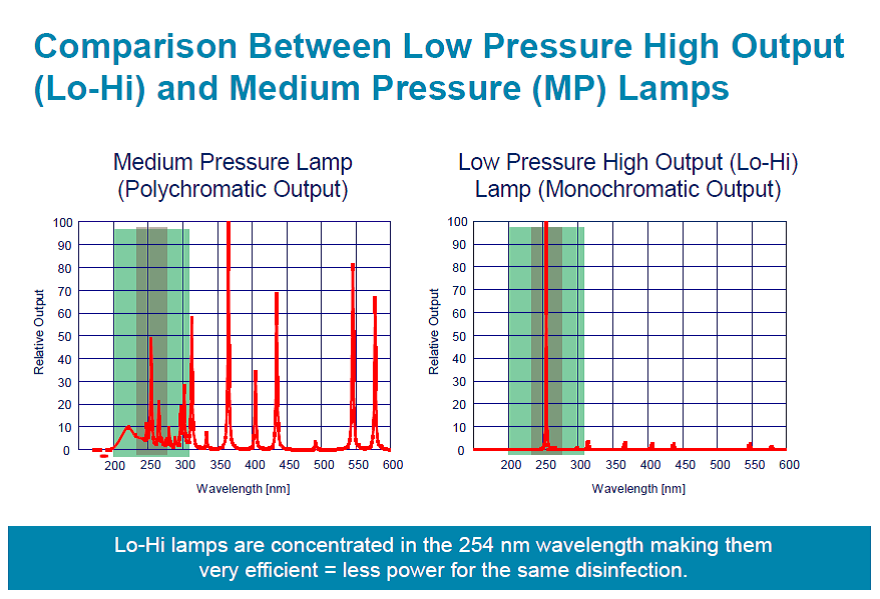

LOW PRESSURE VS. MEDIUM PRESSURE UV LAMPS
UV is a spectrum of light that is just below the visible range to the human eye. The UV-C spectrum (185 – 280 nm) is known as the germicidal spectrum because it is the region that contains the peak germicidal wavelength (260 nm). The UV units for water treatment consist of a specialized low-pressure high output lamp with Mercury indium amalgam filling that produces ultraviolet radiation at 254 nm – very close to the optimum at 260 nm. Compared to the low-pressure lamps, the medium pressure lamps are less efficient in utilizing usable germicidal wavelengths. Medium pressure lamps generally only convert up to 10% of their input watts into usable UV-C watts, whilst amalgam low-pressure lamps can be up to 40% efficient. There has been a drastic rise in market share for “low pressure-high intensity” amalgam lamps in the past few years. This has primarily been driven by the need for higher electrically efficient lamps (thus lower electrical operating costs) combined with the growing awareness in using “green” technologies to reduce carbon footprint.

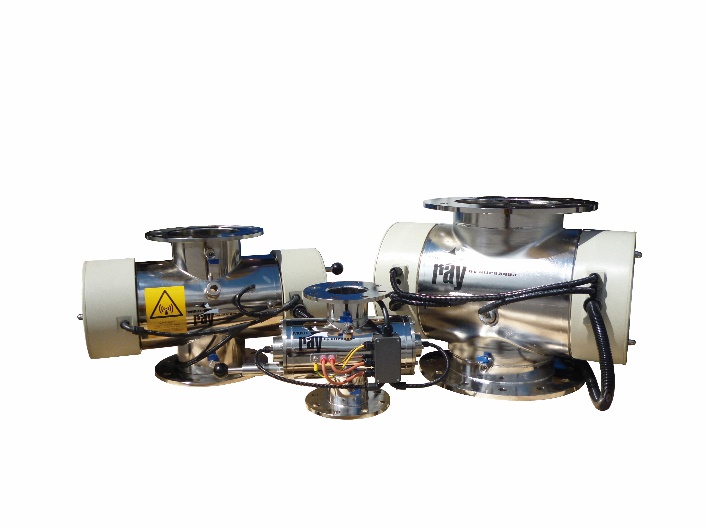

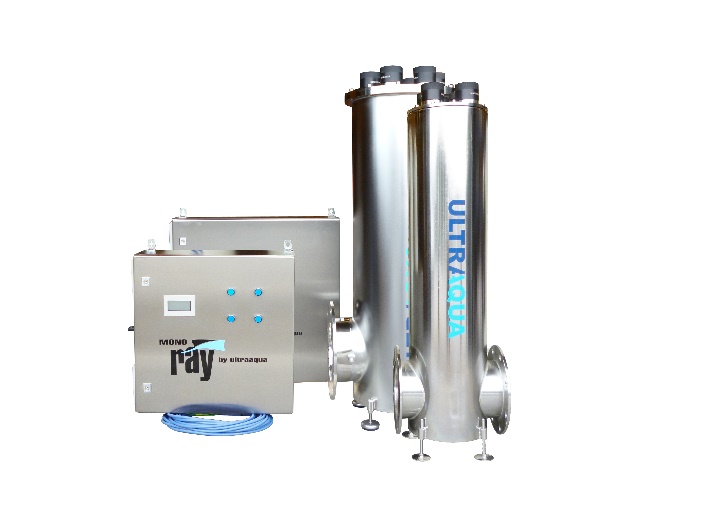

THE CORE OF THE UV SYSTEM
UV systems consists of a control cabinet and a UV reactor. While there are many UV systems in the industry today, the quality of its essential internal parts determines its performance. ULTRAAQUA UV systems use the highest-grade materials and components available on the market.
YOUR ULTIMATE GUIDE TO UV TECHNOLOGY
Since the technology was invented over 100 years ago, the use of UV technology has experienced rapid growth and continuous development to achieve maximum efficiency in various water treatment applications. Today, the potential and advantages of the technology are hard to ignore for the many available water treatment applications. In the guide below, you can find answers regarding its efficiency, functionality, benefits and more.
Nam Solutions and Technologies provide broad range of ULTRAAQUA UV equipment and services to meet specific demands to our customers.
